Trimming Spatial Fat

I had some map data from a 3rd party that wasn't quite correct. Region boundaries where overlapping. This made my query of finding regions within regions come back with bad results. I thought if I could reduce the region polygon by some factor, that it would help avoid picking up the subtley overlapping regions. I was looking for a STShrinkShape(int factor) function but couldn't see anything. If someone knows of a better way, I would appreciate the enlightenment. Here is how I did it:

1. Identify polygon and it's boundary. In this example I create a point and buffer it to create a polygon.

DECLARE @g geometry
DECLARE @h geometry
DECLARE @border geometry

SET @g = geometry::STGeomFromText('POINT(0 0)', 0);
SELECT @g.BufferWithTolerance(1, .5, 0).ToString();
SELECT @h=@g.BufferWithTolerance(1, .5, 0)

SELECT @h as h

SELECT @border = @h.STBoundary()
SELECT @border as border

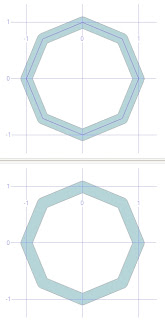

2. Add a buffer, with some buffer factor, around the border and create a new shape. The the inner part of this buffer is going to get subtracted from the original polygon/shape.

SELECT @BUFFER=@border.BufferWithTolerance(0.1, 0.001, 0)

SELECT @border as border
union all

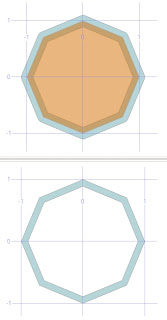

3. Identify the polygon/shape of the inner part of the buffer by getting the polygon that intersect the buffer and the original shape.

union all
select @h as h

declare @diff geometry
SELECT @diff=@BUFFER.STIntersection(@h)
select @diff as diff

4. Subtract this overlapping polygon from the original shape and we get our desired results.

SELECT @h.STSymDifference(@diff) as blah

OGC Methods on Geometry Instances
